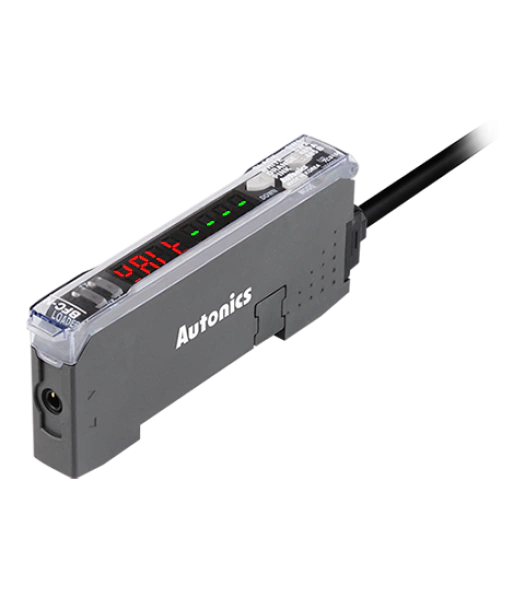

| Type | communication converter for fiber optic amplifier |
|---|---|
| Display method | 4-digit 7-segment LED |
| Power supply | 12-24VDC ⎓ ±10%(ripple P-P: max. 10%) |
| Communication | RS485 communication, Serial communication, SW input |
| Communication speed | 1200, 2400, 4800, 9600, 19200, 38400bps |
| Input | NPN solid-state |
| Application | BFC Series makes for 32 units of fi ber optic amplifi er, BF5 Series, to connect. BFC Series helps for BF5 Series to execute all functions, to set parameters, to monitor real-time data(received light level, output status) via external device(P |
| Protection structure | IP40 |
| Approval |  |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Polybutylene terephthalate, Cover: Polycarbonate |
| Accessories | Connector type wire(Ø4mm, 3-wire, 2m)(AWG22, core diameter: 0.08mm, number of cores: 60, insulator out diameter: Ø1.25mm), Side connector |
| Weight | Approx. 15g |
